MORNSUN AC/DC - Enclosed SMPS Power Supply Universal type (264VAC-input) (35-3000W) LM200-10Bxx
- MORNSUN POWER
- Dec 17, 2025
- 1 min read

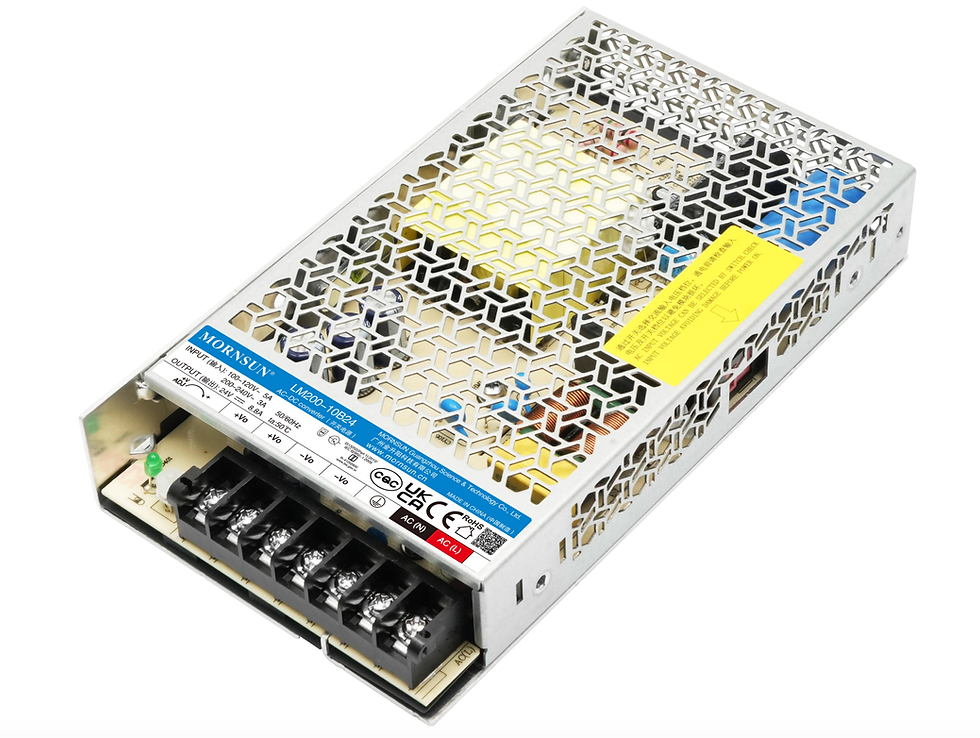

LM200-10Bxx series is one of Mornsun's enclosed AC-DC switching power supply. It features selectable AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency and high reliability. These power supply offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.
Product No. | Power | Vin | Vin | Vout | Iout | Efficiency | Isolation |
(W) | (VAC) | (VDC) | (VDC) | (%) | |||
LM200-10B05 | 150 | 90-132/180-264 | 240-370 | 5 | 30A | 87 | 3000VAC |
LM200-10B12 | 204 | 90-132/180-264 | 240-370 | 12 | 17A | 87.5 | 3000VAC |
LM200-10B15 | 210 | 90-132/180-264 | 240-370 | 15 | 14A | 88 | 3000VAC |
LM200-10B24 | 211.2 | 90-132/180-264 | 240-370 | 24 | 8.8A | 88.5 | 3000VAC |
LM200-10B48 | 211.2 | 90-132/180-264 | 240-370 | 48 | 4.4A | 89.5 | 3000VAC |
LM200-10B36 | 212.4 | 90-132/180-264 | 240-370 | 36 | 5.9A | 89 | 3000VAC |
